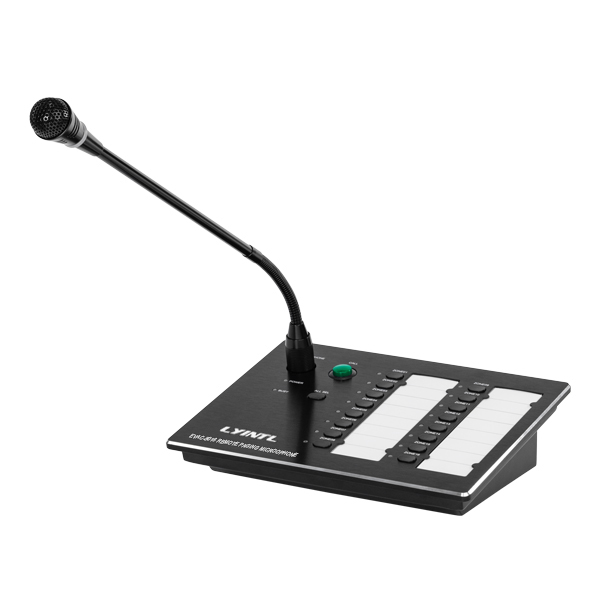

EVAC-5016 16-Zone Voice Evacuation Remote Paging Microphone

The LYINTL EVAC-5016 is a professional 16-zone remote paging microphone designed for use with LYINTL Voice Evacuation & Emergency Broadcast Systems. It provides flexible zone paging, emergency communication, and public address control for medium and large-scale facilities, making it an ideal solution for commercial buildings, transportation hubs, educational campuses, healthcare facilities, and other public venues.

The EVAC-5016 supports 16-zone paging, allowing operators to make announcements to a single zone, multiple selected zones, customized groups, or all zones simultaneously. User-defined group paging functions provide enhanced flexibility for daily operations and emergency broadcasting.

Featuring a built-in high-performance microphone and intuitive control panel, the unit enables fast and reliable paging from remote locations. The microphone supports DIP address configuration, allowing multiple paging stations to be deployed within the same voice evacuation system.

The EVAC-5016 supports both bus-powered operation and DC48V power supply, providing flexible installation options. An integrated AUX input allows external audio sources to be connected for paging signal transmission, while dedicated DIP switches enable users to select between AUX input and local microphone input modes.

Designed for critical communication applications, the system supports redundant wiring, improving overall system reliability and fault tolerance. Up to 8 paging devices (including remote paging microphones and fireman microphones) can be connected within the same system. Through RJ45 communication ports and hand-in-hand wiring, the EVAC-5016 provides simple installation and scalable deployment.

For large-scale projects, the unit supports long-distance communication. A direct connection between the host and a paging microphone can reach up to 600 meters, while cascading up to three devices on a single communication port supports transmission distances of up to 300 meters.

With reliable communication, flexible zone control, and professional emergency paging functionality, the EVAC-5016 is an essential component of modern voice evacuation and emergency broadcast systems.

Key Features

16-Zone Paging Control

Supports single-zone, multi-zone, group, and all-zone paging.

User-Defined Group Paging

Customizable paging groups for flexible announcement management.

Supports Up to 8 Paging Devices

Allows connection of remote paging microphones and fireman microphones within the same system.

Flexible Audio Source Selection

Supports local microphone input or AUX audio input via DIP switch selection.

Bus-Powered & DC48V Operation

Provides flexible and reliable power supply options.

Long-Distance Communication

Supports up to 600m transmission and cascading connections.

Redundant Wiring Support

Improves system reliability and communication security.

RJ45 Hand-in-Hand Connection

Simple installation and expansion through bus communication ports.

Applications

The EVAC-5016 is widely used in:

• Shopping Malls
• Hotels & Resorts
• Office Buildings
• Schools & Universities
• Hospitals & Medical Centers
• Airports
• Railway & Metro Stations
• Government Buildings
• Convention & Exhibition Centers
• Industrial Facilities
• Large Commercial Complexes

Specifications may be subject to change without prior notice.
