DP-808 / DP-1616 Digital Audio Matrix Processor

The LYINTL DP-808 / DP-1616 Digital Audio Matrix Processor is a professional DSP-based audio management platform designed for conference systems, commercial audio installations, public address systems, educational facilities, hotels, government buildings, houses of worship, and multi-purpose venues.

Powered by ADI's fourth-generation high-performance DSP processor and premium 24-bit A/D and D/A converters operating at 48kHz sampling rate, the processor delivers exceptional audio clarity, powerful signal processing capabilities, and flexible system integration.

The DP Series is available in two configurations:

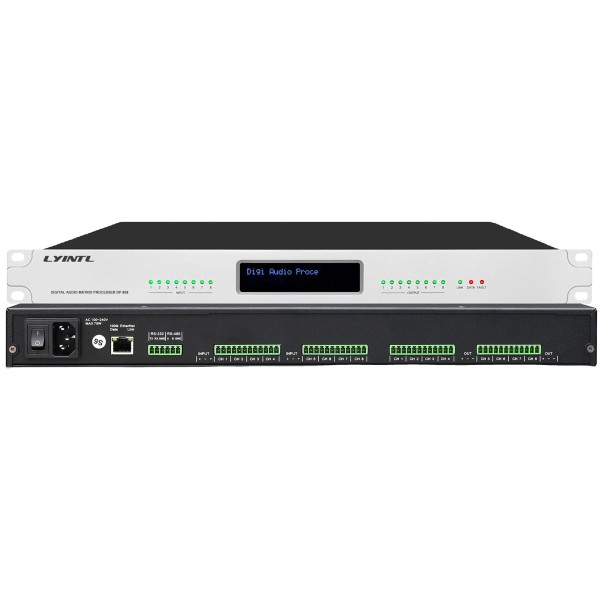

• DP-808: 8 Inputs × 8 Outputs

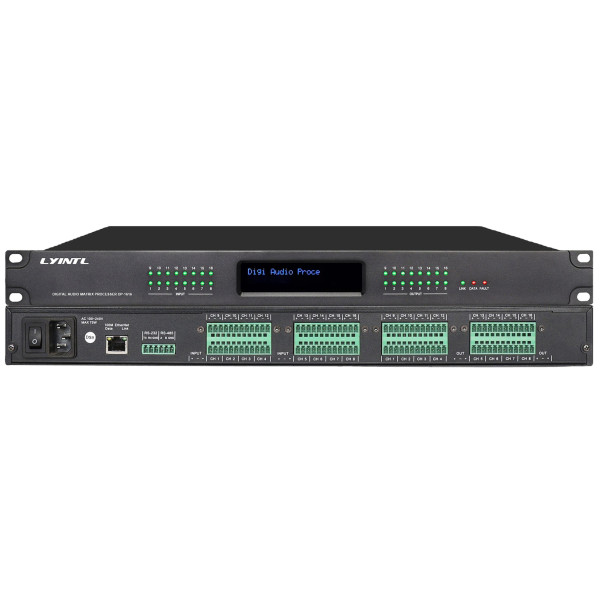

• DP-1616: 16 Inputs × 16 Outputs

The processor integrates matrix routing, automatic mixing, feedback suppression, equalization, crossover, delay, limiter, compressor, noise gate, signal generation, and advanced loudspeaker management functions within a single platform.

Each input channel provides microphone/line selection, 48V phantom power, gain control, noise gate, feedback suppression, high-pass and low-pass filters, 16-band parametric equalization, limiter, phase inversion, delay, and mixing controls. Each output channel features 16-band PEQ, crossover processing, limiter, delay, volume control, and output monitoring.

Built-in 16 independent feedback suppression modules effectively eliminate acoustic feedback and howling problems, making the processor particularly suitable for conference rooms, classrooms, auditoriums, and speech reinforcement applications.

The system supports up to 32 user-defined scene presets, allowing quick recall of system configurations for different applications. Presets can be exported, backed up, and restored through PC software.

For system control and integration, the processor provides Ethernet, RS232, and RS485 interfaces, enabling remote management, third-party control integration, and connection of multiple wall-mounted touch panels for intuitive volume control and preset selection.

With comprehensive DSP processing, flexible matrix routing, and professional audio optimization capabilities, the DP-808 / DP-1616 serves as a complete audio processing and control solution for modern commercial audio systems.

Key Features

High-Performance DSP Architecture

Powered by ADI fourth-generation DSP processor with 24-bit A/D and D/A conversion.

Flexible Matrix Processing

Available in 8×8 and 16×16 audio matrix configurations.

Built-in Feedback Suppression

16 independent feedback eliminators effectively prevent acoustic feedback.

Professional Audio Processing

EQ, crossover, delay, limiter, compressor, noise gate, mixing matrix, and automatic mixing.

48V Phantom Power Support

Each input supports microphone and line-level signals with selectable phantom power.

Preset Scene Management

Store and recall up to 32 user-defined presets.

Wall Panel Expansion

Supports multiple wall-mounted touch panels for volume and preset control.

Remote Control & Integration

Ethernet, RS232, and RS485 interfaces for system integration and third-party control.

Real-Time Monitoring

LCD display shows IP information, operating status, firmware version, and alarm notifications.

Network Firmware Upgrade

Supports online ARM and DSP firmware upgrades for future feature expansion.

Applications

The DP Series is ideal for:

• Conference Rooms
• Government Buildings
• Educational Facilities
• Hotels & Resorts
• Auditoriums
• Houses of Worship
• Command & Control Centers
• Multi-Purpose Halls
• Commercial Buildings
• Corporate Meeting Rooms
• Public Address Systems
• Audio Distribution Systems

Specifications may be subject to change without prior notice.
