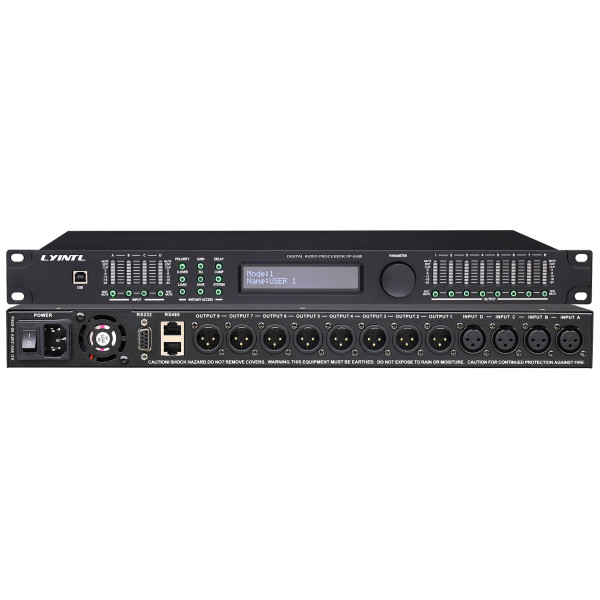

DP-408 4-In 8-Out Digital Audio Signal Processor

The LYINTL DP-408 is a professional digital audio signal processor & speaker management system designed for commercial audio systems, conference systems, performance venues, karaoke installations, houses of worship, bars, theaters, and multi-purpose halls. Powered by a high-performance 32-bit DSP processor and advanced 24-bit A/D and D/A converters, the processor delivers exceptional audio quality with 96kHz sampling accuracy for precise sound management and optimization.

The DP-0408 provides 4 balanced audio inputs and 8 balanced audio outputs, enabling flexible routing and advanced loudspeaker management for complex audio systems. The series is also available in 2×4 (DP-204), 2×6 (DP-206), and 4×6 (DP-406) configurations, allowing system designers to select the ideal model for various project requirements.

Each input channel is equipped with a 31-band Graphic Equalizer (GEQ) and a 10-band Parametric Equalizer (PEQ), while each output channel features a 10-band PEQ. Comprehensive processing functions include gain control, phase adjustment, delay, crossover, limiter, mute, and routing matrix management.

The processor supports multiple crossover filter types, including Bessel, Butterworth, and Linkwitz-Riley filters with selectable slopes up to 48dB/octave, making it suitable for professional loudspeaker systems, subwoofer management, and multi-way audio configurations.

Up to 12 user presets can be stored and recalled instantly for different venues and operating scenarios. USB, RS232, and RS485 control interfaces provide flexible local and remote system management, while the front-panel LCD display offers intuitive operation and monitoring.

With powerful DSP processing, comprehensive loudspeaker management capabilities, and reliable system control, the DP-0408 is an ideal solution for professional audio installations requiring precise signal processing and maximum system flexibility.

Key Features

High-Resolution DSP Processing

96kHz sampling rate with 32-bit DSP and 24-bit A/D & D/A converters.

Flexible System Configurations

Available in 2×4, 2×6, 4×6, and 4×8 input/output configurations.

Advanced Equalization

31-band GEQ and 10-band PEQ on inputs, plus 10-band PEQ on outputs.

Professional Speaker Management

Crossover, limiter, delay, routing, phase, gain, and mute functions.

Long Delay Capability

Up to 1000ms output delay with 0.021ms adjustment resolution.

Multiple Filter Types

Supports Bessel, Butterworth, and Linkwitz-Riley crossover filters.

Preset Memory Storage

Stores up to 12 user-defined presets.

Remote Control Capability

USB, RS232, and RS485 communication interfaces for remote management.

Panel Security Lock

Prevents unauthorized operation and accidental parameter changes.

Applications

The DP-408 is widely used in:

• Professional Sound Reinforcement Systems
• Performance Venues
• Conference Centers
• Karaoke Rooms
• Bars & Nightclubs
• Theaters & Opera Houses
• Houses of Worship
• Multi-Purpose Halls
• Auditoriums
• Educational Facilities
• Hotels & Banquet Halls
• Commercial PA Systems

Specifications are subject to change without prior notice.
