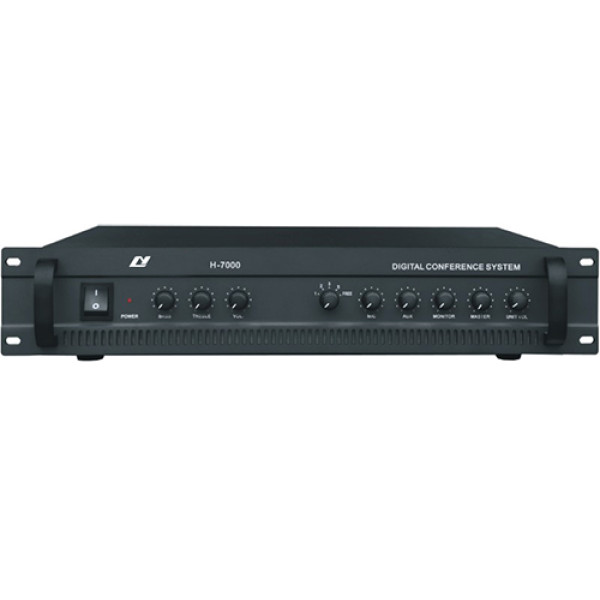

H-7000 Digital Discussion Conference System
◆ Designed accordance to ISO and IEC914 standards
◆ Main unit can support 60 units delegate and chairman microphone, it could be extend to support 250 unit microphone with extension power unit
◆ Equipped with four groups of 8P-DIN interface for system connecting
◆ With port for telephone interface unit, telephone meeting is available with telephone coincidence
◆ Build-in monitor loudspeaker
◆ Build-in power amplifier (2X50W RMS 4-16 Ohm), which can support external speaker directly
◆ System support 1/2/3/5/Free discuss mode
◆ Support video camera auto-track with video processor H-8008
◆ Support voting with voting processor H-8000
◆ Connection:
1 pc 13m main cable with 8 PIN plug
8 PIN socket for system connection
Item | Parameter |
Power Supply | AC110V/240V 50Hz/60Hz |
Consumption Rating | 450W |
T.H.D. | <0.05% |
S/N | >75dB |
Frequency Response | 100Hz-18KHz |
Color | Black |
Net Weight (Kg) | 12.7 |
Audio Input | RCAx1, Φ6.35x1 |
Audio Output | RCAx2, XLRx1 |
Output Impedance | 47KΩ |
Data Communication | RJ45x1 |
System Connection | 8-PIN DINx4 |
Dimension (mm) | 488x360x84 (19"/2U) |
Installation | 2U rack, 19 inch frame |
